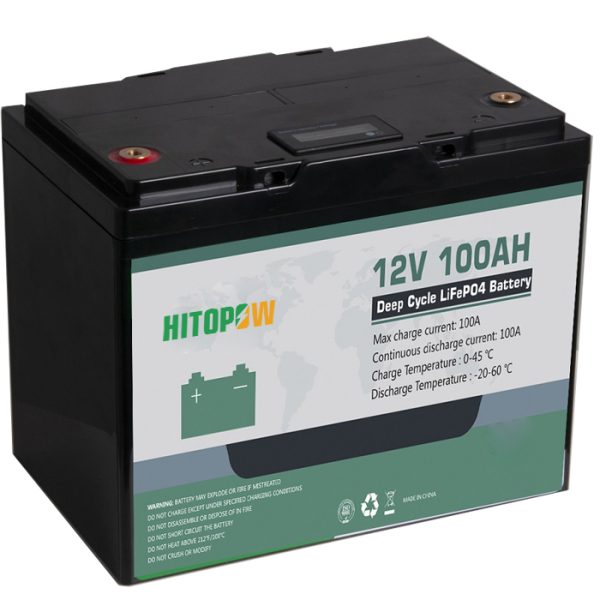

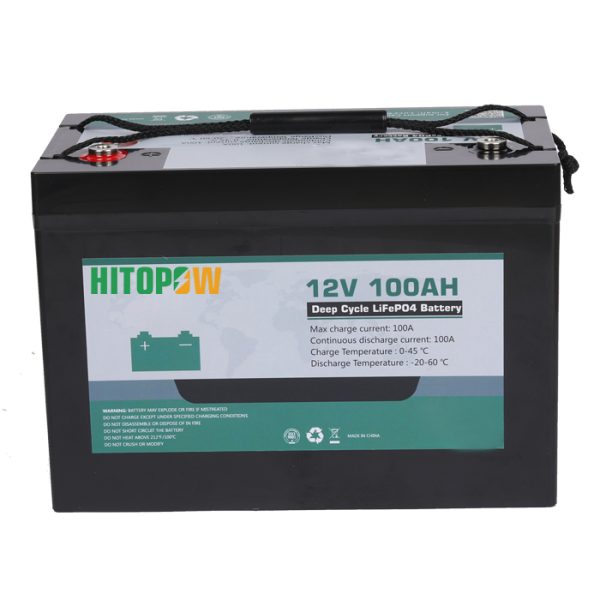

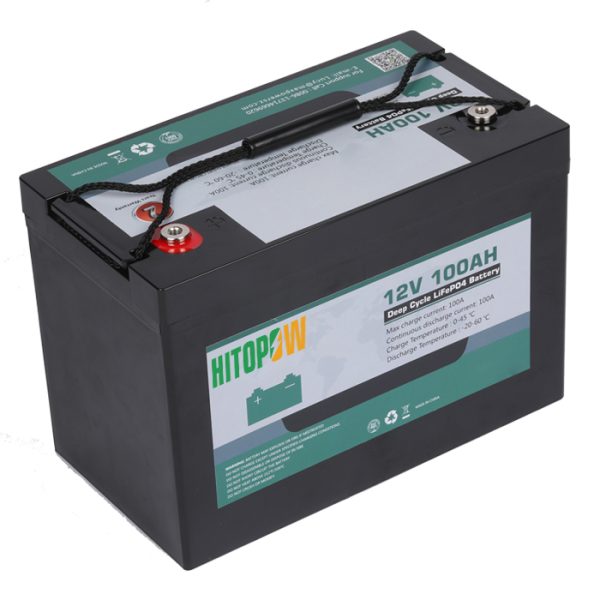

LiFePo4 Battery 12V 100Ah deep cycle long life

12V LiFePo4 Battery 100Ah high discharge rate long cycle life

More than 3500 Cycles battery working life 8-10 years

Air /sea /courier door to door service available.

Contact us for price with specification Now !

Battery Type:
Lithium LiFePO4 Battery
Voltage:
12.8V
Capacity:
100Ah
Dimension:
L*W*H=256*165*210 mm
Weight:
10.5kg
Guarantee
2 years
Certificate :
MSDS/UN38.3/Rohs/CE

Product Video

Product detailed Specifications

RV Lithium Battery 12V 100Ah Specification:

Solar LiFePo4 Battery manufacture HITOP Battery Co.,Ltd
Normal Capacity 100Ah
Normal Voltage 12.8V
Charge cut off voltage 14.4V
Discharge cut off voltage 10V
Charging Method CC-CV(Constant voltage with limited current )
Dimension L*W*H=256*165*210 mm
Charge current Standard charge 20A 0.2C
Max charge current 100A 1C
Cut off charge current 2A(0.02C)
Standard discharge current 20A (0.2C)
Max discharge current 100A
over charge /discharge current 300+/-40A
Internal Resistance Less than 180mOhms
Cycle Life 3500 Cycles
BMS Function over charge over discharge over current protection Balance Function
Operation Temperature -20-60 degree
Weight 10.5KG
Quality Guarantee 2 years
Application Solar system wind system Storage battery RV Backup power Wheelchairs and scooters
Sample lead time 8-10 working days
Mass Production lead time 18-20 working days

Product Key Features

RV Yacht LiFePo4 battery  12V 100Ah deep cycle high rate

  • grade A prismatic lifepo4 Selected LiFePo4 Cells to keep stable quality level
  • Ultra long lifespan  Support 3500 cycles with 2 years quality warantty
  • High power discharge 100A  reliable performance and long working hours
  • parallel or series assembly available to increase more voltage and capacity
  • Smart BMS Battery discharge charge protection and balance function thermal protection
  • Customized service  OEM ODM customized design available for the lifepo4 battery pack



Description

12V 100Ah lifepo4 battery can replace the lead acid battery 12V directly

Maintenance free and green energy to keep safety performance with widely application

  • Marine/Boat/Yacht
  • RV/Camping Car/Caravan
  • UPS/Backup power/Solar storage system
  • Home storage system/Solar street Light
  • Golf car/Sightseeing cars/low speed car

More lifepo4 12V battery models are available

LiFePO4 Battery Packs (Replaces Lead Acid Batteries)
Item Model Voltage Capacity Max. Discharging Current (A) Max. Charging Current (A) Size Weight(kg)
(V) (Ah) (L*W*H)
(mm)
1 HT-6V/6AH 6 6 6 6 70*47*100 0.38
2 HT-12V/6AH 12 6 6 6 90*70*101 0.7
3 HT-12V/7AH 12 7 7 7 151*65*94 0.88
4 HT-12V/12AH 12 12 12 12 181*77*170 1.42
5 HT-12V18Ah 12 18 18 18 181*77*170 2.3
6 HT-12V24Ah 12 24 24 24 180x77x168 2.756
7 HT-12V/36AH 12 36 36 36 256x165x210 4.084
8 HT-12V/50AH 12 50 50 50 229*138*208 5.96
10 HT-12V/60AH 12 60 59 30 256x165x210 5.58
11 HT-12V/80AH 12 80 30 30 330*173*216 7.72
12 HT-12V/100AH 12 100 100 100 256x165x210 10.5
14 HT-12V/120AH 12 120 120 60 256x165x210 10.86
15 HT-12V/150AH 12 150 150 75 330*173*216 15.66
16 HT-12V/180AH 12 180 180 90 330*173*216 16.54
17 HT-12V/200AH 12 200 200 100 490*171*240 20.88
18 HT-12V/300AH 12 300 200 150 520*267*220 31.32
19 HT-24V/100AH 24 100 100 50 490*171*240 19.48
20 HT-24V/150AH 24 150 150 75 520*267*220 29
