More Deep Cycle lifepo4 battery pack,contact us for e-catalogue
Model | Voltage(V) | Capacity(Ah) | Max. Discharging Curent(A) |
Max. Charging Curent(A) |
Size (L*W*H) (mm) |
Weight(Kg) |

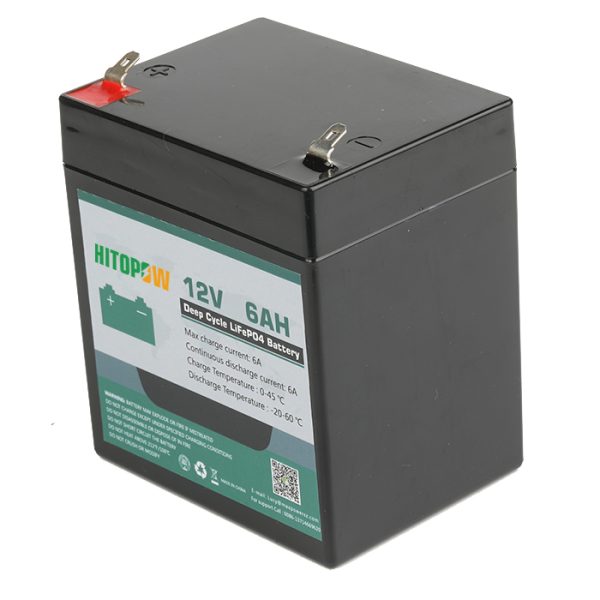

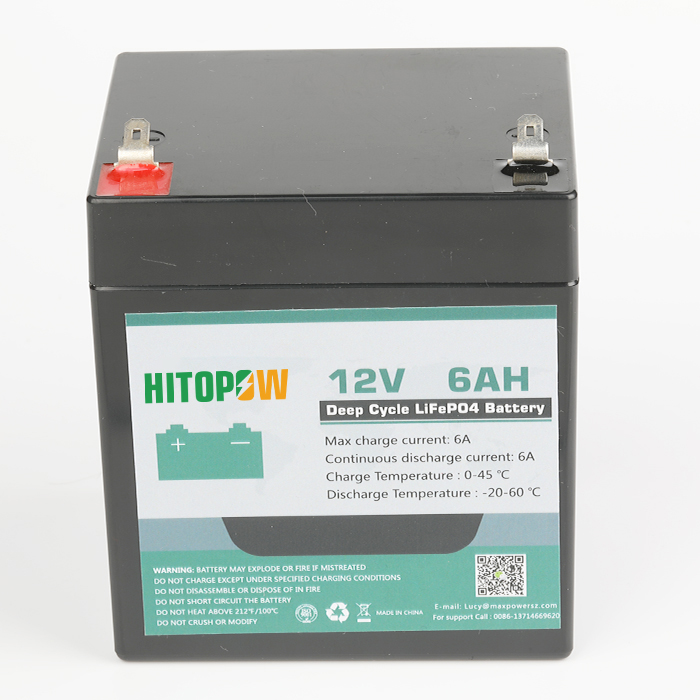

HT-6V6AH | 6 | 6 | 6 | 6 | 70*47*100 | 0.4 |
HT-12V6AH | 12 | 6 | 6 | 6 | 90*70*101 | 0.7 |
HT-12V12AH | 12 | 12 | 12 | 12 | 151*99*84 | 1.5 |
HT-12V18AH | 12 | 18 | 18 | 18 | 181*77*170 | 2.3 |
HT-12V24AH | 12 | 24 | 18 | 18 | 181*77*170 | 2.9 |
HT-12V30AH | 12 | 30 | 18 | 18 | 181*77*170 | 3.5 |
HT-12V50AH | 12 | 50 | 50 | 50 | 229*138*208 | 6 |
HT-12V100AH | 12 | 100 | 100 | 100 | 256*165*210 | 10.5 |
HT-12V150AH | 12 | 150 | 100 | 100 | 330*173*216 | 17.5 |
HT-12V200AH | 12 | 200 | 100 | 200 | 490*171*240 | 23 |
HT-12V300AH | 12 | 300 | 100 | 200 | 521*238*218 | 34 |
